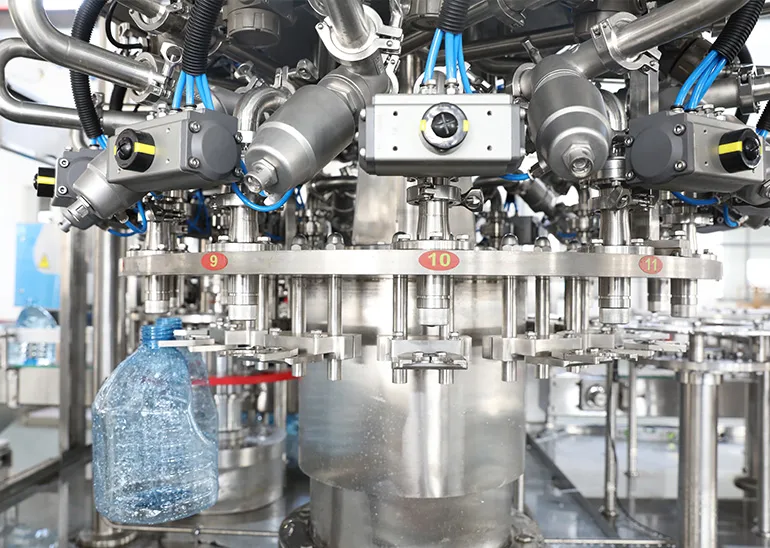

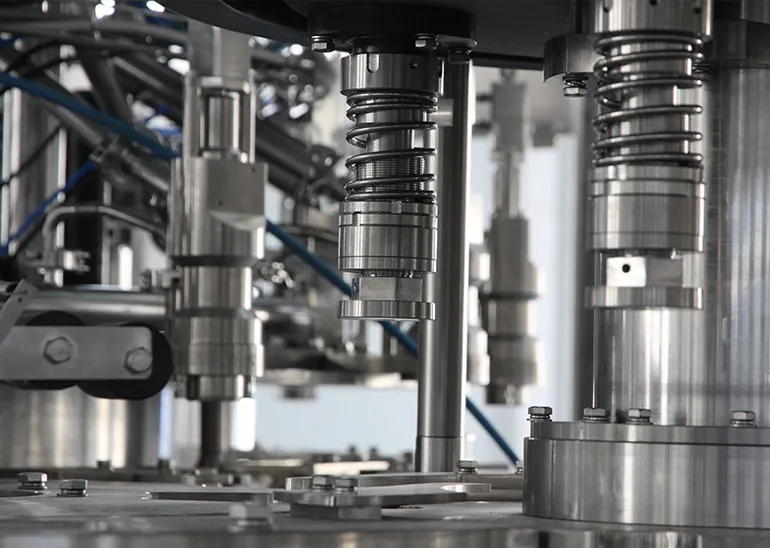

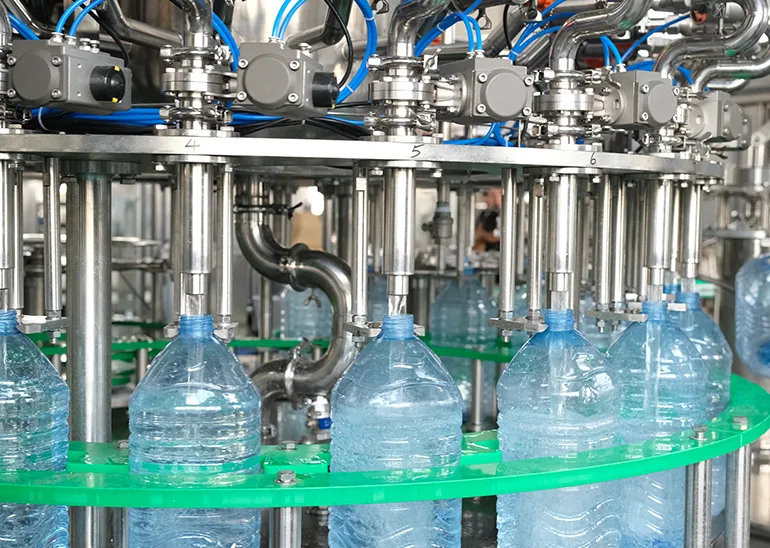

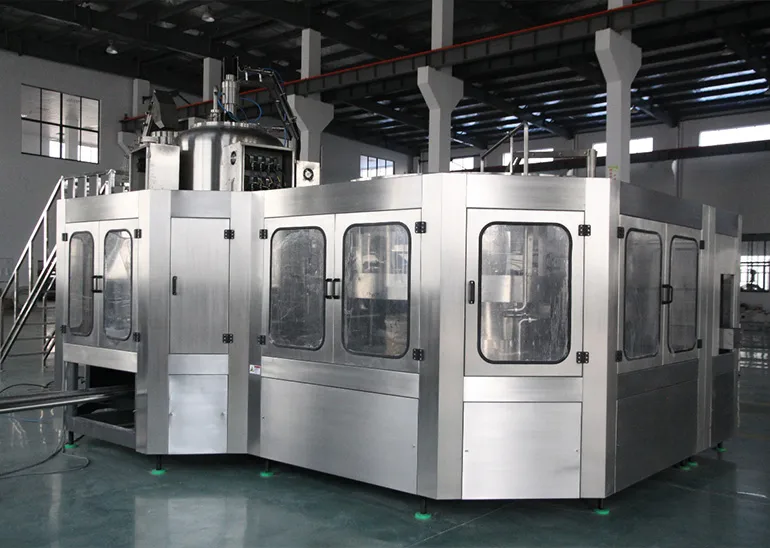

3-5 Gallons Filling Machine
The production line can automatically complete cleaning, loading, sterilizing, filling, capping, heat shrinking, bagging and conveying out of the barrel. It has the features of complete functions, compact structure, simple operation, etc
Step 1: dumping
Step 2: pre washing to prevent dust into alkaline (with high pressure flushing, pressure 65-100bar)
Step 3: dripping
Step 4-5: washing by alkaline
Step 6-7: 80-85°C hot water washing
Step 8-9: 45-55°C alkaline washing
Step 10: holding
Step 11-12: high pressure washing by recycled water
Step 13: dripping
Step 14-16: washing by acid
Step 17: holding
Step 18-20: washing by sanitizer
Step 21: holding
Step 22-23: washing by product water
Step 24: dripping
One set of pump for each step
Model
|
QGF-300
|
QGF-450
|
QGF-600
|
QGF-900
|
QGF-1200
|
QGF-1500
|
QGF-2000
|
Capacity (BPH/5 Gallon)
|
300
|
450
|
600
|
900
|
1200
|
1500
|
2000
|
Touch screen | |
---|---|
PLC | |
Inverter | |
Photoelectric | |
Pneumatic Component | |
Main Motor | ABB |
