Hasil pelabelan yang benar-benar responsif: mesin label sticker semi-modular dengan kontrol suara.

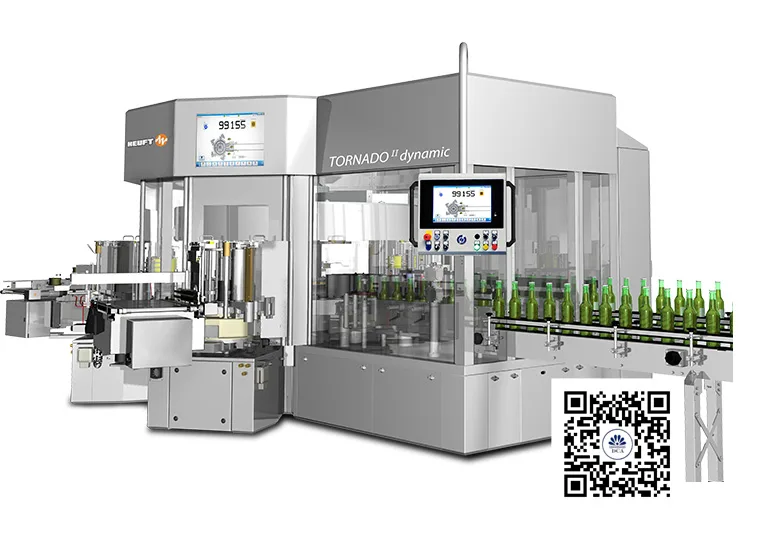

HEUFT TORNADO II dinamis merupakan mesin Adhesive Labeling HEUFT yang memiliki desain terbuka dan merupakan mesin semi-modular yang didasarkan pada HEUFT SPECTRUM II yang sangat otomatis yang menghasilkan kinerja, dinamika, dan presisi yang lebih baik saat menerapkan sticker atau label berperekat. Fungsi dialognya yang inovatif untuk kontrol suara tanpa campur tangan menciptakan responsivitas nyata selama analisis mesin dan pemantauan proses untuk efisiensi dan produktivitas penuh di sepanjang lini.
Aplikasi
Body and Neck Label
Body Label
Body Label
Adhesive Labeling HEUFT

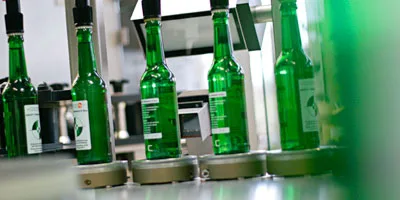

Camera-based, servo-controlled bottle adjustment
Penyelarasan dengan akurasi milimeter: penyelarasan yang mendekati dan halus untuk pelabelan presisi tinggi.
Kerutan dan gelembung, ketidaksejajaran dan offset: satu dari empat stasiun yang dirakit secara permanen dan mudah diganti di HEUFT TORNADO II yang dinamis tanpa meja mesin dilengkapi dengan dua kamera berperforma tinggi, yang tertutup dengan aman dan tingginya dapat disesuaikan secara otomatis, untuk penyelarasan yang mendekati dan halus dari botol yang akan diberi label guna mencegah kesalahan pelabelan seperti ini terjadi sejak awal. Mereka menggunakan struktur wadah yang tidak mencolok seperti jahitan cetakan atau embossing sebagai titik referensi untuk rotasi yang dikontrol servo yang tepat dari setiap botol sehingga label diterapkan dengan rapi dan tanpa lipatan dengan presisi milimeter di tempatnya.
- semi-modular all-in-one machine of the new generation for high-precision wet glue, self-adhesive and wrap-around labelling
- flexible equipping or retrofitting with up to four stations for a camera-based bottle alignment, individual labelling and automatic magazine feed
- easy to integrate inspection modules for sustainable quality assurance for full containers
- powerful HEUFT SPECTRUM II platform and HEUFT TORNADO II flex technology for servo-controlled rotating cams which can be programmed according to the brand and are reproducible at any time, accurate labelling results as well as simple, almost fully automatic brand changes
- open design without a machine table for optimum accessibility during changeovers, cleaning and maintenance work
- compact, robust, low-wear construction in accordance with the hygiene-optimised HEUFT CleanDesign
- audiovisual HEUFT NaVi user guidance and innovative hands-off voice control for full overview, responsivity, operational reliability, efficiency and productivity
- online connection for production data acquisition and remote maintenance
- performance range – up to 60,000 bottles per hour
HEUFT SPECTRUM II
Simply automating: universal device platform for maximum performance.
Simply automating: universal device platform for maximum performance.Highly automated, universal and powerful: the HEUFT SPECTRUM II ensures optimum detection and operational reliability during an in-line quality assurance for the sustainable safeguarding of product quality and line efficiency.
The cross-system control unit with multiprocessing capability for different modules, systems and applications convinces due to its exceptional degree of automation. Brand and format changes can be carried out without manual intervention. The unique human machine interface of the universal device platform is self-explanatory. Human resources are effectively saved in this way. In-house developed hardware and software of the latest generation and a future-proof network connection achieve highest computing power and data transmission in real time. The result: maximum precision during purposeful product tracking, inspection and rejection.
HEUFT NaVi
Simply knowing what to do: self-explanatory audiovisual user guidance.
Simply knowing what to do: self-explanatory audiovisual user guidance.Intuitive, individual and audiovisual: previous knowledge is not required in order to operate the HEUFT SPECTRUM II systems reliably. The HEUFT NaVi user guidance is self-explanatory and supports the respective user step by step.
An RFID login with user-related access rights provides an overview and makes the respective user’s work simply easy: he only sees what he really needs to on the clearly arranged touchscreen user interface with a flat menu structure, integrated tutorials and precise auxiliary tools in order to fulfil his specific tasks optimally. He is supported by a virtual assistant in the course of this. She speaks to him and clearly explains what has to be done when and where. Purposeful and focused on the essentials – the audiovisual HEUFT NaVi user guidance makes the reliable operation of HEUFT systems simply easy!
HEUFT checkPoints
Simply seeing where what has to be done: trouble-free localisation.
Simply seeing where what has to be done: trouble-free localisation.Clear, direct and purposeful: the user can cope immediately on the rare occasions when manual intervention is needed. Because eye-catching HEUFT checkPoints make it clear at a glance exactly when it is necessary to take matters in hand in addition to the audiovisual information which the HEUFT NaVi provides.
The orange tags not only flash on the touchscreen but also at the respective component if the worst comes to the worst. The problem is located without a long search. This saves time and human resources, shortens standstills and therefore increases productivity.
Network technologies
Networking everything: online connection for increased efficiency and quality.
Networking everything: online connection for increased efficiency and quality.Information transmission in real time, production data acquisition, line analysis and remote maintenance: networking is the answer!
HEUFT systems have future-proof network interfaces (Gigabit Ethernet and TCP / IP) for an online connection via the Internet and the database interface (SQL / DDE) for top line efficiency and an optimum quality management with considerably faster and easier workflows. Therefore production data, shift records, productivity faults and HACCP limit value analyses are available network-wide. The result: early identification of quality and efficiency problems. The firewall protected direct connection to the HEUFT TeleService makes competent remote maintenance possible all around the clock.

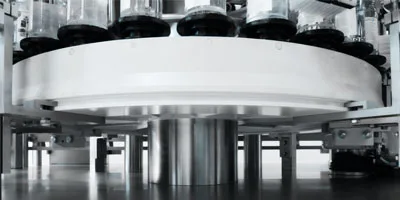

HEUFT CleanDesign
Cleaning quite simply: hygiene-optimised construction.
Cleaning quite simply: hygiene-optimised construction.Accessible, clean and safe: its HEUFT CleanDesign predestines the system for use in hygienically sensitive areas.
Sloping surfaces facilitate cleaning and prevent the accumulation of stubborn dirt. Special channels and openings allow the liquids required for cleaning purposes to be drained off completely. Consequently dangerous germs and bacteria have no contact surface whatsoever. Specially constructed casings and doors create optimum accessibility. The electronics are totally encapsulated. Sensitive areas such as the inspection units are dust-proof and protected against contact as well as water jets.
HEUFT rejector
Removing faulty products: the right rejector for all cases.
Removing faulty products: the right rejector for all cases.For example, the compact single-segment HEUFT flip and HEUFT mono systems as well as the multi-segment HEUFT DELTA-K and HEUFT DELTA-FW rejectors are ideally suited for the reliable rejection of faulty full containers.
