Foreign Object Inspection

HEUFT eXaminer II XAC

Deteksi sederhana lebih lanjut:  Pemeriksaan kontainer lengkap dengan HEUFT SPECTRUM II

Benda asing di dalam botol minuman yang terisi penuh merupakan risiko keamanan yang nyata. Oleh karena itu, penting untuk melacaknya saat masih berada di jalur produksi dan menghapus produk tersebut sejak dini dari lini produksi. HEUFT eXaminer II XAC yang ringkas dengan desain hygiene-friendly HEUFT CleanDesign,  memantau keamanan produk secara terus-menerus dan mengidentifikasi benda asing bahkan dalam produk yang buram.

Sistem lini akhir yang didasarkan pada platform perangkat HEUFT SPECTRUM II yang otomatis mencapai kinerja tinggi dan tiada bandingnya,  dengan teknologi sinar-X yang dioptimalkan secara berkelanjutan. Panduan pengguna audiovisual HEUFT NaVi membuat pengoperasian bebas kesalahan menjadi mudah.

X-ray base inspection

Covering everything:  complete inspection of the container base without blind spots.

Glass splinters, small pieces of metal and stones:  the system identifies such foreign objects on the base of the container highly precisely.  A unique combination of X-ray strobes and compact full-field image converters available exclusively from HEUFT increases the range, speed and precision of the inspection.  Even foreign objects close to the base curvature are identified reliably.  Blind spots are ruled out.

The double base inspection with specially arranged detection units in conjunction with the HEUFT reflexx² real-time image processing system ensures this.  The X-ray parameters adapted to the full-field image converters reduce the already unequalled low radiation.  In contrast to the conventional X-ray scanner it is only emitted at the moment when a product to be examined is in the inspection area.

Fault rejection

Preventing recalls:  the reliable rejection of faulty containers.

Fast, careful and accurate:  highest precision when detecting faults is only effective if the products in question are also removed afterwards.  The single-segment and multi-segment rejection systems of the HEUFT rejector series deal with this both precisely and carefully.

Product monitoring and self-tests

Playing it safe:  exact product tracking and regular self-tests.

Always knowing the current location of a particular product:  each one is tracked precisely for this.  This ensures that none remain uninspected.

The integrated reject verification checks that each product identified as faulty is really removed.  Standard test programs guarantee a regular examination of the detection performance.  Network-based continuous documenting and long-term archiving of the results.

Optional additional functions

Detecting even more:  extensions to the range of functions.

The HEUFT SPECTRUM II systems with their modular design can be extended at any time.

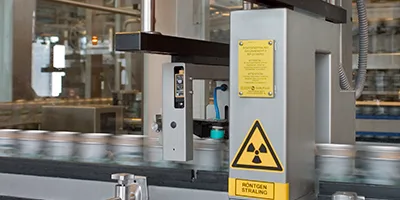

Therefore the range of functions of the HEUFT eXaminer II XAC can be extended, for example, with powerful detection units for precisely checking the fill level.

Lifetime-optimised pulsed X-ray

Simply better and more sustainable detecting: Unique technology with extended reliability.

More precise, gentler, more durable: what makes the HEUFT X-ray systems so unique is above all the pulsed X-ray technology which is exclusively available from us. Instead of an uninterrupted continuous beam only a short X-ray pulse of a millisecond is emitted. And only at the moment when a product to be examined for dangerous foreign bodies and other safety risks is actually in the detection area. Even if the line speeds are extremely high or fluctuate, full detection reliability is achieved with unrivalled low radiation. The specially developed X-ray tube and other sustainably optimised components not only increase the coverage and sensitivity of radiometric inspection. The same applies to reliability and lifetime, so that the Total Cost of Ownership (TCO) is significantly reduced.

Long before individual X-ray components can lose performance or fail, users are also informed in good time so that they still have enough time for preventive maintenance. Filaments are even integrated redundantly: if one should fail, the other takes over immediately and fully automatically, so that production can continue without interruption. Furthermore novel full-field image converters for which HEUFT can now guarantee a lifetime of eight years* within the framework of an existing maintenance contract and a free replacement within this period in the case of a defect ensure considerably more sensitivity, availability and operational reliability with a reduced TCO.

HEUFT SPECTRUM II

Simply automating:  universal device platform for maximum performance.

Highly automated, universal and powerful:  the HEUFT SPECTRUM II ensures optimum detection and operational reliability during an in-line quality assurance for the sustainable safeguarding of product quality and line efficiency.

The cross-system control unit with multiprocessing capability for different modules, systems and applications convinces due to its exceptional degree of automation.  Brand and format changes can be carried out without manual intervention.  The unique human machine interface of the universal device platform is self-explanatory.  Human resources are effectively saved in this way.  In-house developed hardware and software of the latest generation and a future-proof network connection achieve highest computing power and data transmission in real time.  The result:  maximum precision during purposeful product tracking, inspection and rejection.

HEUFT reflexx A.I.

Simply detecting more:  real-time image processing with artificial intelligence.

The AI discipline of machine learning for targeted object classification has been mastered by our self-developed image processing since 2010! And since then it has learned a lot: intelligent filters distinguish drops of water on the container from air bubbles in the glass and even make it possible to identify tiny defects which are hidden behind ACLs or embossings. HEUFT reflexx A.I. now also uses deep learning!

Appropriately trained neural networks are used for example to denoise X-ray images or to find dangerous foreign objects in structured products and to reliably distinguish them from good objects which are extremely similar in their shape, size and density. With true artificial intelligence, the hardware and software from our own development and production again increases detection reliability – and minimises the false rejection rate. The smart image processing can be directly integrated into the HEUFT reflexx A.I. camera which was developed in-house and which processes and evaluates its own images directly in real time and raises the adaptive image analysis to a top level.

HEUFT NaVi

Simply knowing what to do:  self-explanatory audiovisual user guidance.

Intuitive, individual and audiovisual:  previous knowledge is not required in order to operate the HEUFT SPECTRUM II systems reliably.  The HEUFT NaVi user guidance is self-explanatory and supports the respective user step by step.

An RFID login with user-related access rights provides an overview and makes the respective user’s work simply easy:  he only sees what he really needs to on the clearly arranged touchscreen user interface with a flat menu structure, integrated tutorials and precise auxiliary tools in order to fulfil his specific tasks optimally.  He is supported by a virtual assistant in the course of this.  She speaks to him and clearly explains what has to be done when and where.  Purposeful and focussed on the essentials – the audiovisual HEUFT NaVi user guidance makes the reliable operation of HEUFT systems simply easy!

HEUFT checkPoints

Simply seeing where what has to be done:  trouble-free localisation.

Clear, direct and purposeful:  the user can cope immediately on the rare occasions when manual intervention is needed.  Because eye-catching HEUFT checkPoints make it clear at a glance exactly when it is necessary to take matters in hand in addition to the audiovisual information which the HEUFT NaVi provides.

The orange tags not only flash on the touchscreen but also at the respective component if the worst comes to the worst.  The problem is located without a long search.  This saves time and human resources, shortens standstills and therefore increases productivity.

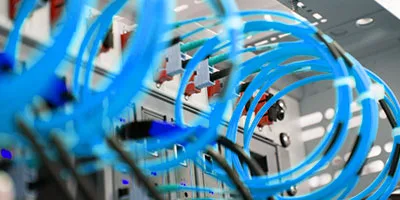

Network technologies

Networking everything:  online connection for increased efficiency and quality.

Information transmission in real time, production data acquisition, line analysis and remote maintenance:  networking is the answer!

HEUFT systems have future-proof network interfaces (Gigabit Ethernet and TCP / IP) for an online connection via the Internet and the database interface (SQL / DDE) for top line efficiency and an optimum quality management with considerably faster and easier workflows.  Therefore production data, shift records, productivity faults and HACCP limit value analyses are available network-wide.  The result:  early identification of quality and efficiency problems.  The firewall protected direct connection to the HEUFT TeleService makes competent remote maintenance possible all around the clock.

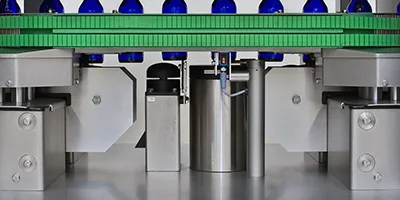

HEUFT CleanDesign

Cleaning quite simply:  hygiene-optimised construction.

Accessible, clean and safe:  its HEUFT CleanDesign predestines the system for use in hygienically sensitive areas.

Sloping surfaces facilitate cleaning and prevent the accumulation of stubborn dirt.  Special channels and openings allow the liquids required for cleaning purposes to be drained off completely.  Consequently dangerous germs and bacteria have no contact surface whatsoever.  Specially constructed casings and doors create optimum accessibility.  The electronics are totally encapsulated.  Sensitive areas such as the inspection units are dust-proof and protected against contact as well as water jets.

HEUFT rejector

Removing faulty products:  the right rejector for all cases.

For example, the compact single-segment HEUFT flip and HEUFT mono systems as well as the multi-segment HEUFT DELTA-K and HEUFT DELTA-FW rejectors are ideally suited for the reliable rejection of full bottles contaminated with foreign objects.

  • maximum detection reliability due to a unique combination of X-ray strobes and full-field image converters
  • reliable inspection of larger containers due to extended sensitive detection surface
  • independent of product’s own signal and metal packaging components
  • very clear, high-resolution X-ray images without distortions or motion blurs
  • unequalled low radiation emission
  • minimum false rejection rate
  • highly automated HEUFT SPECTRUM II platform with self-explanatory HEUFT NaVi user guidance
  • automatic adjustment of detection units during brand and format changes
  • compact dimensions and hygiene-optimised HEUFT CleanDesign
  • online connection for remote maintenance and production data acquisition
  • performance range: up to 72,000 bottles per hour
