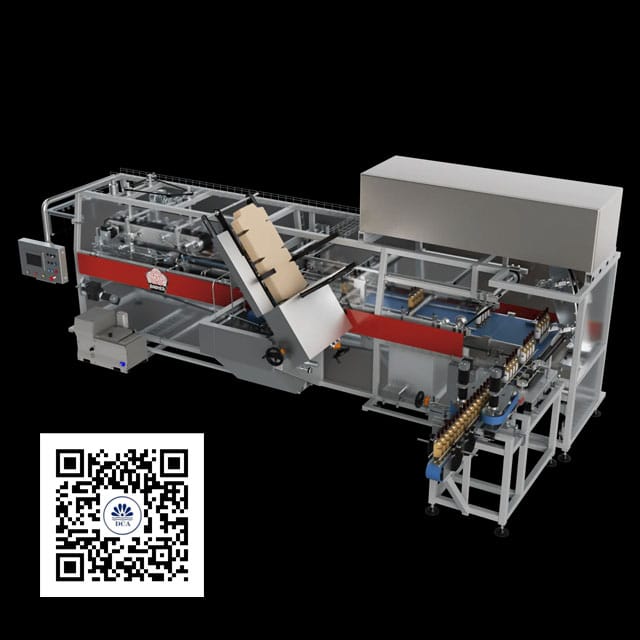

High Speed Wrap Around Case Packer
Mesin ini merupakan solusi ideal untuk mengemas produk dalam karton, baki tinggi (tray) atau karton pajang, dengan cara mudah dan aman untuk produk, efisien dan hemat energi.
Kecepatan produksi hingga 100 karton per menit, teknologi canggih, dan sistem khusus membuat mesin ini cocok untuk semua jenis produk, termasuk wadah persegi panjang dan oval. Karton dipasang membungkus produk, menghasilkan karton yang kokoh dan kuat, cocok untuk semua jenis penggunaan akhir.
Kami juga menyediakan mesin Shrink Wrapping kecepatan tinggi, hingga 200 pack per minute, dan mesin Combi Wrap Around Cartoning & Shrink Wrapping , sebuah mesin Combi yang dapat digunakan untuk Case Wrapping Cartoning dan Shrink Wrapping secara bergantian dalam 1 unit mesin. Untuk mendapatkan informasi tentang mesin Combi, silahkan kunjungi halaman combi
Hubungi kami untuk mendapatkan solusi High Speed Wrap Around Case Packer terbaik dari Baumer Italy.
APLIKASI

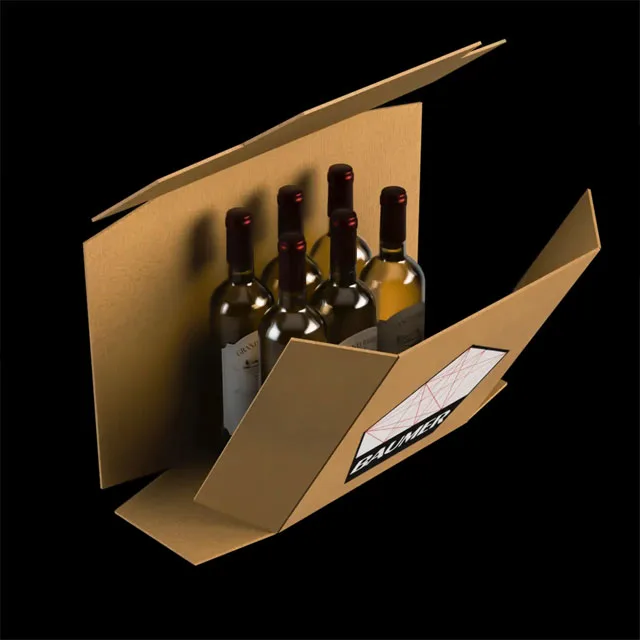

Cardboard wrap

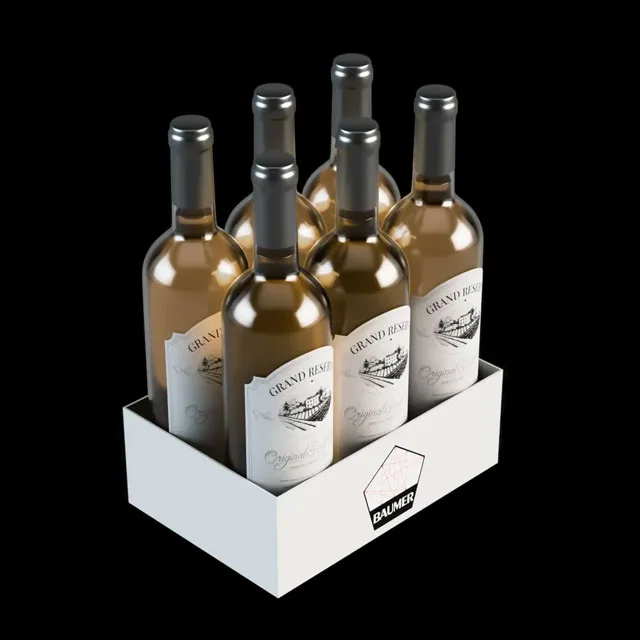

Low tray
(without film)

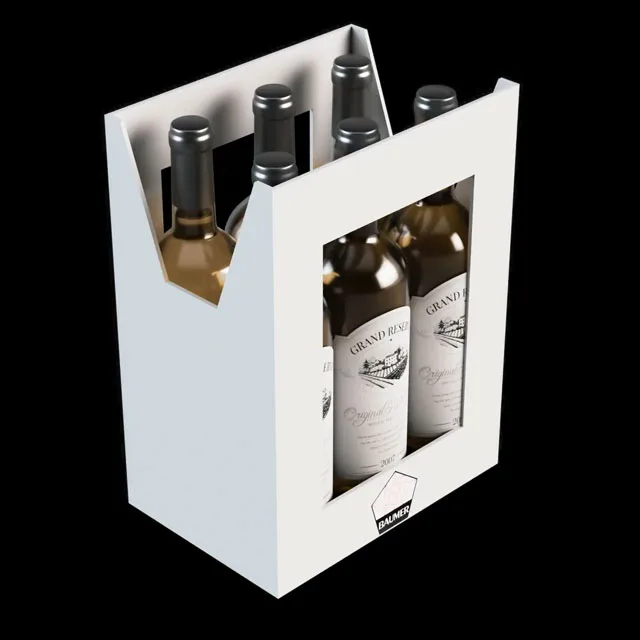

High tray
(without film)
Tray: 1/2 pallet & 1/4 pallet
High Speed Wrap Around Case Packer
Infeed
Wrap-Around case packers infeed can be selected in-line or with the innovative 90° Infeed System that thanks to the elimination of the classic Divider can reduce the size of the machine and is capable of working with any type of product.

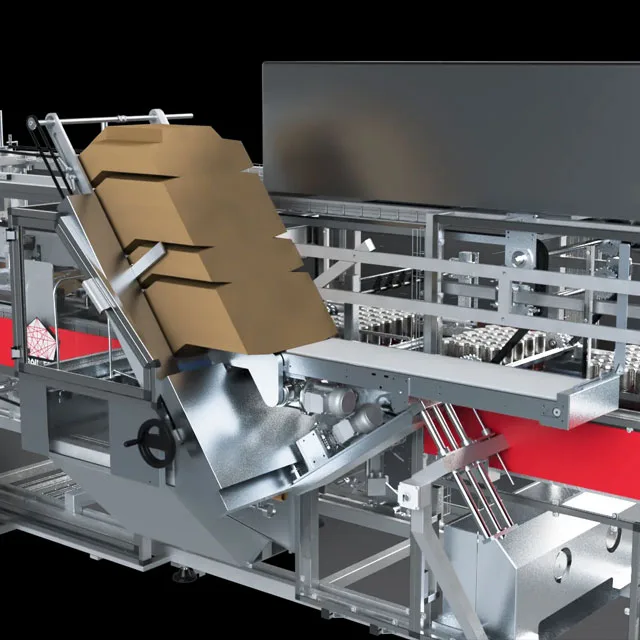

Cardboard Magazine
Positioned sideways and at an ideal height to allow the operator to work without uncomfortable and effortless operations. High production autonomy and ability to process cartons of different thicknesses.

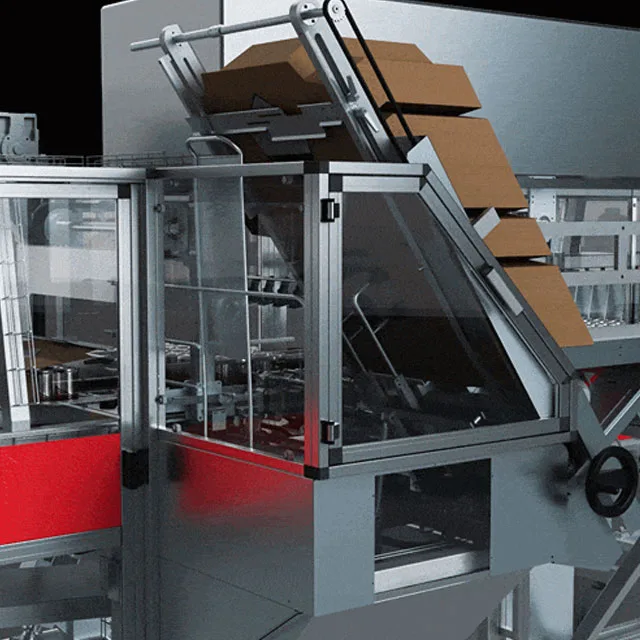

Pick-up Cardbord System
Cartons are picked up without pressure by a suction cup system; they are deposited on a belt with a suction system and controlled by brushless motor to regulate its infeed speed.
- Possibility of processing cardboard of different thicknesses
- Greater tolerance on the flatness of the blank
- Decreased machine pitch
- Ability to process large-sized blanks
Automatic Format Changeover
Baumer’s case packers can be equipped with different types of format changeover, from standard manual to automatic changeover that allows for agile, one-click changeover from the operator panel in less than 10 minutes.
Pre-formed and no-preformed partitions
For some types of premium products, it is necessary to insert inside the packaging cardboard partitions capable of protecting the bottles during transport and preventing them from breaking.
Especially used in the beverage & spirits industry this solution can be integrated on Baumer machines with two different systems:
High Speed Wrap Around Case Packer
- Speed: up to 100 cartons per minute
- Alternating pack formation via double gates for low speeds and continuously for high production speeds
- Side magazine ideal for easy loading of cartons
- Brushless servo motor drives
- Extremely reduced and simplified maintenance operations
- Sliding protective doors to allow easy accessibility and visibility of the production cycle
- Touch screen control panel with on-line help, production diagram and machine operation information
- SIEMENS or Allen Bradley PLC
High Speed Wrap Around Case Packer
- Internal flap closure system
- Carton magazine extension
- Preformed hive insertion system
- Patented non-preformed hive insertion system
- Modem for remote assistance
- Automatic format changeover
- Possibility of working with tray only
- Predisposition to work with shrink film in the future as well
- 90° system with continuous motion for square, rectangular, bricks products
- Product overlapping system
- Allen Bradley component configuration
- Device to process quarter pallet (400 x 600 mm)
